AQUATICA D850

Aquatica is proud to introduce to you our new AD850 housing for Nikon's next-generation high resolution, full-frame DSLR. Reserve your unit now!

Design & R&D

We are proud of the lightweight design on our AD850; this being possible because of our new in-house 5 axis machine & our engineers being able to work closely with the machine programmer. This housing is 12% lighter than our AD800 & AD810 housings, but yet still has the same standard 90m/300ft depth rating and can still be upgraded to 130m/425ft. We then ergonomically placed the vital controls where they are most needed, right at your finger tips. Even though the D850 is a bigger camera than the D500, the AD850 housing has the same form factor and layout control as our popular AD500 housing.

The Nikon D850 camera main features:

  • 45.7MP Digital SLR

  • BSI Full-Frame Image Sensor

  • No Optical Low-pass filter

  • 4k Ultra HD video recording

  • 3.2'' Tilting touch screen

  • Built-in Wi-Fi, NFC & Bluetooth

  • Widest & Brightest viewfinder of any DSLR

  • Outstanding battery performance



New self-aligning controls

Another great improvement over our previous housings for Nikon cameras are new self-aligning controls. On the AD850 housing the On/Off lever and the Live view selector are spring loaded, therefore you will not need to insure the controls on the camera are properly set before closing the housing. In addition, the lens release, auto focus mode and the FN1 controls were moved to the saddle allowing the user to slide in the camera without pulling any levers.

The AD850 was designed to have all the following controls right at your fingertips:

  • Shutter

  • Front dial wheel & Rear dial wheel

  • ISO

  • WB

  • AF-On

  • Exposure compensation

  • Info

  • Live View

  • D-pad

  • A new AF-On lever was designed to allow all users, even those with smaller hands to simultaneously activate the AF-On and the shutter. This new lever has now been positioned ½ an inch lower and 1 ¼ inch to the front, as compared to previous models.

  • The ISO lever has now been placed right at your finger tips, it also has a very low profile, this keeps it just below the top of the right grip. It can be easily activated with your right thumb while keeping your hand on the grip.



Handling the housing is via our acclaimed moulded grips, these have been the industry reference in comfort for the last 25 years. These lightweight yet sturdy grip handles are made of one piece and cannot come unglued, fall apart or corrode. Grips are provided with standard sized mounting holes ready to accept the most current strobes and their supporting arms. On top of the housing is an extra mounting point for attaching a focus/video light or other accessories, three additional standard sized mounting points are provided on the bottom of the housing, there you can attach various brackets, support or a tripods.

The Aquatica AD850 housing comes standard with a Surveyor monitoring sensor. This sensor acts as a moisture alarm and can with the addition of a vacuum extracting valve an pump, be used for constantly monitoring the sealing integrity of the housing, adding another level of safety and peace of mind.



The Aquatica AD850 is supplied with our Galileo type eye piece. This high quality and coated optical finder gives a bright and full view of the view finder. For those seeking the ultimate in viewing for still image, the optional Aqua View Finder, available in straight and 45 degrees version, are among the best of the industry, they can easily be installed in a matter of a few minutes by the user. The enlarged and enhanced image provided by the Aqua View Finder (#20054 & 20059) is second to none in clarity, it provides the photographer with tack sharp corner to corner viewing of the camera view finder for composing and critical focusing.

Flash triggering options:

  • #20084-OPT Aquatica housing for Nikon D850 with Dual Optical connectors

  • #20084-NK Aquatica housing for Nikon D850 with Dual Nikonos connectors

  • #20084-IKE Aquatica housing for Nikon D850 One Ikelite connector



Main features of the Aquatica AD850

  • Well established and proven system of ports, extensions and accessories to meet your personal lens preferences.

  • Quick and simple installation of enhanced viewfinders; no special tools required.

  • Exceptionally good and ergonomic control placement.

  • All controls remain accessible in all dive conditions, either cold or warm, gloves or not.

  • Secure port locking system and easy access lens release button.

  • The most comfortable and sturdy hand grips in the industry, also extendable for larger or gloved hands.

  • Precise camera mounting via a quick release camera tray with angled rear LCD positioning.

  • Two (2) entry point for accessories such as HDMI monitors, remote control or vacuum monitoring systems.

  • Eight (8) threaded standard 1/4''-20 holes, one located on top, three on the bottom and four on the grips, to mount strobe arms, brackets, tripods and a wide range of accessories.

  • Depth rating options of 90m or 130m depth at no extra charge (factory installed).

  • Made with a time proven manufacturing process, using the best material available and state of the art tooling. This offers you many years of dependable and enjoyable service.


Dimensions: (with grips attached) W 255mm x H 180 mm x D 145mm / W 10.1” x H 7” x D 5.7”
Dimensions: (without grips) 360mm/14.15''


FINAL PRODUCT MAY VARY


Now available

AQUATICA 5DMK IV Housing

Aquatica is proud to introduce to you the new Aquatica A5DMkIV housing forCanon's latest evolution to the 5D family, the 5D Mk IV.

THE CONSTRUCTION

Picture taken with the 5DMk IV camera, theCanon 100 f2.8L IS behind the Aquatica 4'' mini dome

The Canon 5DMk IVcamerabrings stunning and previously unheard of levels of resolution to the realms of DSLR’s cameras, our job at Aquatica is to provide you with the right tools for capturing your vision of the underwater world.



All Aquatica housings are constructed from the finest material available in the industry. They are carefully crafted from a selected alloy of aircraft grade aluminum and a premium grade of stainless steel, the housing shell is machined using the latest 5 axis computer assisted machines. After undergoing a series of quality control operations, the main body and its controls knobs will get protection by anodizing them to North American military specifications, furthermore, a coating of “tough as nail” powder coating is baked on at a high temperature. Corrosion inhibiting zinc anodes are standard equipment on all of our housings. These extra levels of protection are apparent, even with over 1,500 dives on them, still look as fresh as the day they came out of the box.

The A5D Mk IV housing was designed to be as small and lightweight as it could be, nevertheless its lightness in weight should not be taken for a weakness. This housing still has the same standard 90m/300ft depth rating and can still be upgraded to 130m/425ft.

Aquatica housingsare made for the hard working photographer, one who truly understands reliability in the field. Built in Canada means that every Aquatica housing is born and bred in one of the world most rugged diving environment. Bottom line, if it works in our local conditions, it will work everywhere else!

THE ERGONOMICS

Given the immense impact its predecessors had on the underwater imaging, it was deemed absolutely important that this new housing be optimized so that all its controls would be easy to reach and operate smoothly. AF-ON & start button access is provided with a rotating collar that prevents ambient pressure from pushing it back towards the housing. Menus buttons are angled to provide an easier reach for your left hand. The 4xxxx gear system with a smaller housing pinion gear and larger lens gear results in smoother action while zooming in a video sequence. Knurled knobs and oversized controls translate into positive and easy operation no matter what the situation is.

MAIN FEATURES OF THE AQUATICA A5DMkIV HOUSING

  • Well established and proven system of ports, extensions and accessories to meet your personal lens preferences.

  • Quick and simple installation of enhanced viewfinders; no special tools required.

  • Exceptionally good and ergonomic control placement.

  • All controls remain accessible in all dive conditions, either cold or warm, gloves or not.

  • Secure port locking system and easy access lens release button.

  • The most comfortable and sturdy hand grips in the industry, also extendable for larger or gloved hands.

  • Precise camera mounting via a quick release camera tray with angled rear LCD positioning.

  • Two (2) entry point for accessories such as HDMI monitors, remote control or vacuum monitoring systems.

  • Eight (8) threaded standard 1/4''-20 holes, one located on top, three on the bottom and four on the grips, to mount strobe arms, brackets, tripods and a wide range of accessories.

  • Depth rating options of 90m or 130m depth at no extra charge (factory installed).

  • Made with a time proven manufacturing process, using the best material available and state of the art tooling. This offers you many years of dependable and enjoyable service.

The Aquatica A5DMk IV is a very compact and lightweight housing tipping the scale at just:
Dimensions: (with grips attached) W 35cm x H 19.5cm x D14.5cm / W 13.78” x H 7.65” x D 5.72”
Dimensions: (without grips) 23cm x H 19.5cm x D14.5cm / W 9.06” x H 7.65” x D 5.72”

AQUATICA A5DSR Housing

The Aquatica Team is proud to introduce to you the new Aquatica A5Dsr housing for the upcoming Canon 5Ds, 5Dsr and the existing 5D Mk III.

THE DESIGN
Our Design team has refreshed the housing design for the 5D line of cameras with new improved operational ergonomics. This precision housing follows in the steps of a very time proven lineage of underwater camera housings for the constantly evolving 5D camera line up. Aquatica has been on top of the 5D program since they introduced the original one a decade ago, much like the 5D camera did, our housing has evolved into a fine imaging tool that mirrors the constant evolution of technology and the input of highly respected professional’s image makers from around the world.

THE CONSTRUCTION
The Canon 5Ds and 5Dsr cameras brings stunning and previously unheard of levels of resolution to the realms of DSLR’s cameras, our job at Aquatica is to provide you with the right tools for capturing your vision of the underwater world.

All Aquatica housings are constructed from the finest material available in the industry. They are carefully crafted from a selected alloy of aircraft grade aluminum and a premium grade of stainless steel, the housing shell is machined using the latest 5 axis computer assisted machines. After undergoing a series of quality control operations, the main body and its controls knobs will get protection by anodizing them to North American military specifications, furthermore, a coating of “tough as nail” powder coating is baked on at a high temperature. Corrosion inhibiting zinc anodes are standard equipment on all of our housings. These extra levels of protection are apparent, as can be seen on some Aquatica housings that, even with over 1,500 dives on them, still look as fresh as the day they came out of the box.

The A5Dsr housing was designed to be as small and lightweight as it could be, nevertheless its lightness in weight should not be taken for a weakness. This housing still has the same standard 90m/300ft depth rating and can still be upgraded to 130m/425ft.

Aquatica housings are made for the hard working photographer in mind, one who truly understands reliability in the field. Being built in Canada means that every Aquatica housing is born and bred in one of the world most rugged diving environment. Bottom line, if it works in our local conditions, it will work everywhere else!

THE ERGONOMICS
Given the immense impact its predecessors had on the underwater imaging, it was deemed absolutely important that this new housing be optimized so that all its controls would be easy to reach and operate smoothly. AF-ON & star button access is provided with a rotating collar that prevents ambient pressure from pushing it back toward the housing. Menus buttons are angled to provide an easier reach for your left hand. The 4xxxx gear system with a smaller housing pinion gear and larger lens gear results in smoother action while zooming in a video sequence. Knurled knobs and oversized controls translate into positive and easy operation no matter what the situation is.

The Aquatica A5Dsr is a very compact and lightweight housing tipping the scale at just:

Dimension: (with grip attached) W 35cm x H 19.5cm x D14.5cm / W 13.78” x H 7.65” x D 5.72”
Dimension (without grip) 23cm x H 19.5cm x D14.5cm / W 9.06” x H 7.65” x D 5.72”

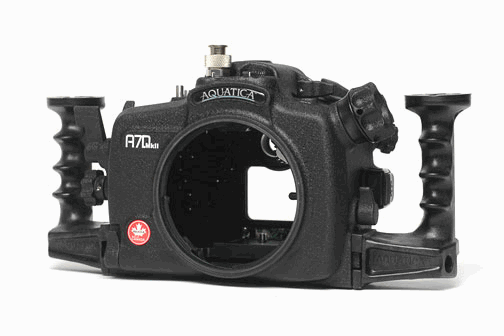

AQUATICA 7D MK II Housing


Much like it did with the initial 7D, Canon implemented autofocus technology usually reserved to its pro level cameras. The 7D Mk II picks up the strength of its predecessor and improves on them.

In its role as a still camera, the 7D Mk II benefits from a 65 points, all cross-type, AF module and a 150,000 Pixels RGB+IR metering sensor, giving it the iTR (intelligent Tracking & recognition) capability of the flag ship Canon EOS 1Dx, using this technology, the camera can determine automatically which AF point is needed to properly maintain focus on the subject selected initially.
With an upward boost of 10 frames per second, again a feature found on pro level cameras, the shutter is designed to go beyond the 200,000 actuations.

The 20MP sensor is of the same generation as the ground breaking 70D, so focusing in video is vastly improved in this area, and also pertaining to video is the addition of 1080p/60 shooting and the possibility to choose between .MOV and .MP4.

About the Aquatica A7D Mk II housing:

The Aquatica A7D Mk II is the only aluminum housing with built in TTL capability for Ikelite strobes, it combines the fine craftsmanship of our housings with the impressive knowledge in strobe technology from Ikelite. If the subject exposure requires it, the exposure correction dial for the strobe, which is conveniently located on the rear, close to one’s right hand, makes easy work of tweaking exposure, simply by rotating the knob with one’s thumb, even switching the strobes to full manual and controlling their power output can be done from this control.

The shell is made of top grade aluminum and stainless steel controls, both being the same alloys as used in the aeronautical industry. Precision machined from solid stock, anodized to stringent norms and powder coated for added protection, our housing are known to routinely go beyond 3,000 hours in salt water, and are the brand used and recommended on the two largest fleets of live aboard boats in the world.

Access to the camera controls is complete, with special attention been given to the controls of the video features, for which a smooth operation is always crucial when shooting video footage. Knobs are large sized, giving the user a better and smoother feel when working with cold water gloves, depth rated to 300ft/90m and up to 425ft/130m (free of charge) on request.

All in all the A7D Mk II housing is well balanced underwater, even all kitted up for actual diving conditions with modeling light and dual strobes , the A7D Mk II is easy to operate, with the housing vital mechanical controls accessible at all time. The right hand business side has controls over the strobe exposure compensation control knob, AF-ON and star (*) lever, ISO lever, aperture and shutter speed knobs, and the multi control array, buttons, all without having to remove one’s hand from the grips. The left hand side reaches the Zoom/focus control, the Menu, INFO, playback and other buttons.

AQUATICA D5 Housing

BUILT JUST FOR THE D5

Aquatica is happy to introduce to you our new housing for Nikon’s new Flagship pro DSLR camera body combining highly evolved ergonomics with features customized for Nikon’s most advanced SLR.

Aquatica was the first to offer access to the Fn1, Fn2 and Pv controls. This is done via a unique toggle levers that accesses the three buttons and gives the photographer control over such things as the power aperture (Close + Open), index marking in video mode and also allows easy viewing of photo shooting information.

A newly designed camera tray delivers smooth and precise positioning of the camera in the housing and allows the user to insert and remove the camera using a simple push tab. The zoom actuating pinion gear and the lens release lever also pull out so the camera can be removed from the back while keeping a lens and zoom gear attached.

Left-hand control buttons are angled and positioned for faster access to the various functions and a quick lever was added for the important ISO access. On the right hand the Live View lever has been relocated closer to your thumb. The multi-controller pad found on the Nikon D5 is made accessible with a simple and proven design and its SET button has been oversized. All push buttons are of high quality Type 304 stainless steel and operate smoothly for a natural feel and intuitive operation.

MAIN FEATURES OF THE AQUATICA AD5 HOUSING

  • Well established and proven system of ports, extensions and accessories to meet your personal lens preferences.

  • Quick and simple installation of enhanced viewfinders; no special tools required.

  • Exceptionally good and ergonomic control placement.

  • All controls remain accessible in all dive conditions, either cold or warm, gloves or not.

  • Secure port locking system and easy access lens release button.

  • The most comfortable and sturdy hand grips in the industry, also extendable for larger or gloved hands.

  • Precise camera mounting via a quick release camera tray with angled rear LCD positioning.

  • Two (2) entry point for accessories such as HDMI monitors, remote control or vacuum monitoring systems.

  • Eight (8) threaded standard 1/4''-20 holes, one located on top, three on the bottom and four on the grips, to mount strobe arms, brackets, tripods and a wide range of accessories.

  • Depth rating options of 90m or 130m depth at no extra charge (factory installed).

  • Made with a time proven manufacturing process, using the best material available and state of the art tooling. This offers you many years of dependable and enjoyable service.

The lightweight AD5 benefits from the finest material available in the metallurgic industry and is carefully crafted from a selected alloy of aircraft-grade aluminum. This housing still has the same standard 90m/300ft depth rating and can be upgraded to a 130m/425ft depth rating. Its knurled knobs and oversized controls mean easy operation in all conditions.

Every Aquatica housing is machined on the latest five-axis computer assisted machines. It then undergoes a protective anodizing process to the stringent North American Military Specifications. A baked on powder coating paint is then applied for a tough-as-nails exterior. Additional protection comes from corrosion inhibiting zinc anodes, provided standard with every housing. This additional level of protection is highly effective, as can be seen on some housings with more than 1,500 dives on them that still look as fresh as the day they came out of the box.

WHAT'S IN THE BOX

  • Anodized 6061-T6 aluminum housing

  • Crinkle powder coating

  • Best grips in the industry (Left & right)

  • Choice of strobe connectors

  • Optional left top side 1/2'' or 16mm hole opening

  • 8 x 1/4-20 mounting points (top & bottom)

  • Mounting hardware for grips

  • Three sturdy stainless steel latches (with secondary lock)

  • Extra main sealing oring

  • Extra Port oring

  • Aquatica standard eye piece

  • Built in leak sensor, valve & pump

AQUATICA D500 Housing

The new Aquatica AD500 housing is designed specifically for the long awaited Nikon D500 camera. With 21mp still image, 4K video possibilities, impressive level of low light performance, this Nikon D500 is a worthy addition to the DX format, a much appreciated sensor size for underwater photography.

THE CONTROL LAYOUT

Aquatica designed the AD500 housing by carefully selecting the features that will improve performance for underwater imaging. We then ergonomically placed the vital controls where they were most needed, right at your fingers tips. At the core of this housing design one can trace over 30 years of expertise in this field. Years of knowledge that have pushed us forward in incorporating new ideas, concept and technological advances to these constantly evolving imaging tools.HOW TO QUICKLY GET TO THE CONTROLS:ISO is one of the key controls in managing the exposure in video, hence particular attention was made in bringing this control at your thumb fingertip. Exposure compensation been crucial as well, a dedicated lever has been implemented for engaging it quickly when needed. The control pad can also be accessed quickly via a set of extended controls that brings it close to your right hand for easy access, same goes for the AF-ON lever with its wide range of optionsavailable through the CSM menu of the camera. The Fn1 lever located in front and Fn2 button on the rear also gives you access to a range of CSMfeatures. Two oversized and conveniently placed buttons give a speedy access to the info and Live View activating features on the camera, recording is as easy as pressing on the dedicated lever placed strategically close to your thumb.

HOW IT’S MADE

At the core of the design is the shell, designed on cutting edge software by dedicated individuals, machined on state of the art 5 axis CNC machine from a solid block of 6061 T6 aluminum alloy, the same routinely used in aerospace technology. This alloy is acclaimed for its high resistance to corrosion. The shell is then anodized to a MIL-A- 8625 Type 2, Class 2 speciation, and finally covered with a tough as nails, black polyester powder coating baked at a high temperature in order to be certified certified to A.A.M.A 2603-98 specification. This kind of protection is not superfluous, as evidently shown on Aquatica housings having logged over 3,000 immersion and which are still on active duty day after days.

Control shafts and push buttons are Type 304 stainless steel, another metal commonly used by the aerospace industry. It is controlled to be free of the iron contaminants that degrade quality and integrity of the metal, such as often found on the less stringent type 316, which unfortunately, is too often used in this industry.

The housing shell has two entry points for connecting strobes plus two others for adapting various accessories. There is a large 16mm diameter access point on the left hand side, ideal for connecting a monitor. Also located on the left hand side is a standard 1/2” diameter access point for the optional Surveyor pressure valve.

The best selection of strobes connectors on the market.Dual Nikonos bulkheads

  • Optical fiber with flash trigger included

  • Ikelite single bulkhead

  • Built in TTL converter for optical or electrical triggering.



MAIN FEATURES OF THE AQUATICA AD500 HOUSING

  • Exceptionally good and ergonomic control placement.

  • All controls remain accessible in all dive conditions, either cold or warm, gloves or not.

  • Secure port locking system and easy access lens release button.

  • The most comfortable and sturdy hand grips of the industry, also extendable for larger or gloved hands.

  • Precise camera mounting via a quick release camera tray with angled rear LCD positioning.

  • Two (2) entry point for accessories such as HDMI monitors, remote control or vacuum monitoring systems.

  • Eight (8) threaded standard ¼”-20 holes, one located on top, three on the bottom and four on the grips, to mount strobe arm, brackets, tripods and a wide range of accessories.

  • Depth rating options of 90m or 130m depth at no extra charge.

  • Made with a time proven manufacturing process, using the best material available and state of the art tooling, to offer you many years of dependable and enjoyable service.
