ALL SUBAL products referenced, are on preorder; contact/email us for $ & shipping availability!

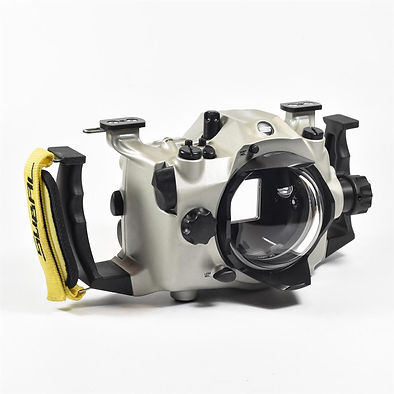

Subal NZ

for NIKON Z7 & Z6

SUBAL NZ is new design and engineering masterpiece. Housing provides access to all functions and buttons of the Nikon Z6 & Z7 cameras. The ergonomic SUBAL design and arrangement of all important elements of the housing allows the camera an easy operation without letting go of the handle. The camera is mounted on a special sled, to mount the camera with precision in the housing, this allows a more faster and secure mounting. A 4 mm O ring and the NEW SUBAL locking system, prevents accidental crushing of the O-ring, and ensures maximum safety. Threaded holes at the base allows attaching Rails etc. Pilot lights can be attached or mounted to the top shoe. The monitor window provides a glare-free and high-contrast insight on the camera monitor. Material selection, processing, surface protection and finish conform to the usual standard level of quality that is all the SUBAL products. SUBAL offers for this housing model 4 different search systems: the standard viewfinder slimmed reduces the viewfinder image, so that it can fully overlooked despite diving mask. The GS 180 and the 45° viewfinder offer a viewfinder in size approximately corresponding to the camera's viewfinder, with the insight of the GS-180 horizontally, the insight of the WS-45 under 45°. The new Prism Finder PS-30 shows the camera monitor image at the same size at a viewing angle of 30°. The insight is with normal reading distance, which is why the PS-30 is ideal for video recording that Nikon D5 have in 4K resolution. All Subal viewfinders systems are interchangeable and can be mounted easily by the user. All SUBAL ports with bayonet mount on this case can be used.


Also, this housing has plug-in system for installing camera into housing - there is no need for any setting of the camera before putting it into housing. With this self adjusting system with springs, the only thing that customer should do, is to fix camera on camera saddle, and to slide it into housing.



Technical data:

Seawater resistant aluminum alloy worked from the block. Hard Coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder coating paint is applied to give the housing the subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high quality plastics, to endure all working conditions. SUBAL QuickLock closure system.



Maximum depth: 80 m (120 m on request)

Weight: Approx. 2.5 kg (without port and accessories)

Weight in water: nearly neutral (depending on the port and accessories)

Width x height x depth:

Approx. 255 x 172 x 147 mm mm (w/o port and handles)


Accessories:

- On back side, there is a thin line for showing middle of objective. This is for easy positioning camera when taking photos by SPLIT technique;
- 5 pin standard connectors;
- optical connector optional;
- Nikon TTL system optional for Sea&Sea i Inon strobes;
- 16mm thread for vacuum sensor and remote control system;
- installed electronic leaking alarm;
- ability to install SUBAL manual trigger;
- ability for using all underwater camera tripods.



Flash arm mounting:

2 x T-plates 25 mm, TLC - or ultralight base optional shoe, top shoe mounting

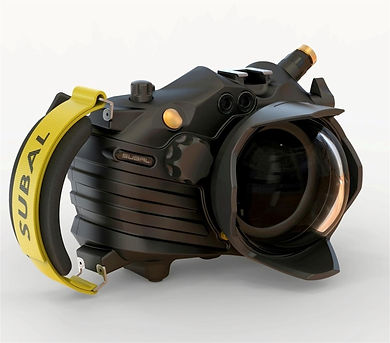

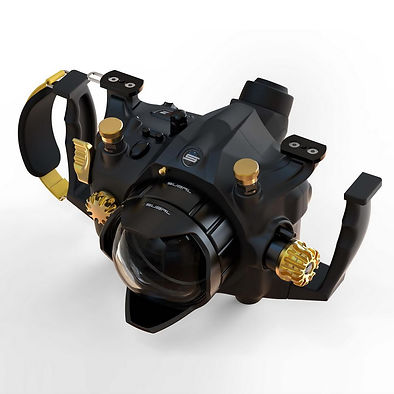

SUBAL announces the special edition of underwater housings - SUBAL NAVY line!
SUBAL NAVY line housings are made of high quality, light weight aluminium in marine standard for salt water. Special hard anodizing layer as final surface protection is resisted on scratches and salt water as well. Our matt colour finish is specially designed to be anti reflex on all light sources. Also come with black/grey SUBAL handle strap as special edition.
SUBAL NAVY line can use all type of SUBAL ports and extension rings for all type of lenses that are used in underwater photography and all SUBAL  accessories. One of the bigest advantages from NAVY line is that it can be used almost with all types of lenses on the market on special request. Long distance lenses like 200mm, 300mm, 200-500mm and others can be used in specially designed ports for military purpose.

SUBAL NAVY line housings are made for the special requirements for Navy and Army needs.

• Extreme durable in all condition of using • Extreme thick layer of anodizing - no reflection
• Diving depth 80 meter, or 120 meter
• Operating temperature -70°C to + 80°C
• High ergonomic
• Easy to use with gloves
• Almost all available camera lenses are possible to use
• Life time warranty

Housings for Nikon, Canon, Leica, Sony, Panasonic, Olympus, Fuji & GoPro are available in NAVY line NOW!

We customize all special needs on request.

For price inquire please send e-mail on info@scubacam.com.sg

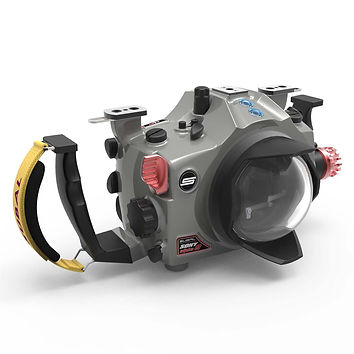

Subal Alpha 9

for Sony Alpha 9

The Alpha 9 housing provides access to all the functions of the Sony Alpha 9. The ergonomic SUBAL housing design and arrangement of all the key controls allows easy camera operation without letting go of the grip. The camera is fitted on a special cradle which enables a precise and faster, more secure mounting. A 4mm O-ring and the SUBAL New quick-lock closure system prevents accidental crushing of the O-ring and ensures maximum safety. Threaded holes at the base allow the attachment of a tray. Focusing lights can be attached or mounted to the top shoe. The monitor window provides a glare-free and high-contrast view of the camera monitor. Material selection, processing, surface protection and finish conform to the usual high-quality that is common to all SUBAL products.

Technical Data:
Seawater-resistant aluminum alloy worked from a solid block. Hard-coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder-coating paint is applied to give the housing the Subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high-quality plastics to cope with the marine environment.

Width x height x depth:
Approx. 275 x 173  x 115 mm  (w/o port and handles)

Strobe connections:
2 strobe connectors optionally Nikonos V, IKELITE or Subtronic S6 Sockets connected in parallel, also bulkheads for optical cable is possible

Flash arm mounting:
2 x T-plates 25 mm, TLC - or Ultra light base optional shoe

Transmission and features:
All functions of the camera can be operated. In particular: main switch/backlight, shutter, zoom (manual focus), front and rear main dial, lens release, focus mode (M-S-C), AF mode, metering, AF-lock, AF-ON, port-lock, photo/video switching.

Push buttons for:
Mode, exposure compensation, bracketing, Flash method, AF mode, lock, video start / stop, playback, delete, menu, thumbnail, protect, OK, ISO, quality, white balance, microphone, multifunction button, info, Live View. AF-on, PV, FN, AF Mode, lens release.

Maximum depth: 80 m, 120m (Optional)

Weight:  approx. 1,7 kg

Weight in water:  nearly neutral (depending on the port and accessories)

The SUBAL Alpha 9 housing for the Sony Alpha 9 provides access to all camera functions.

Subal Alpha 7 Mk2

for Sony Alpha 7 M II

The Alpha 7 Mk2 housing provides access to all the functions of the Sony Alpha 7 II s / r  including Live View and Info. The ergonomic SUBAL housing design and arrangement of all the key controls allows easy camera operation without letting go of the grip. The camera is fitted on a special cradle which enables a precise and faster, more secure mounting. A 4mm O-ring and the SUBAL Quick-Lock closure system prevents accidental crushing of the O-ring and ensures maximum safety. Threaded holes at the base allow the attachment of a tray. Focusing lights can be attached or mounted to the top shoe. The monitor window provides a glare-free and high-contrast view of the camera monitor. Material selection, processing, surface protection and finish conform to the usual high-quality that is common to all SUBAL products.


Technical Data:
Seawater-resistant aluminum alloy worked from a solid block. Hard-coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder-coating paint is applied to give the housing the Subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high-quality plastics to cope with the marine environment.


Width x height x depth:
Approx. 258 x 151  x 112 mm  (w/o port and handles)



Strobe connections:

2 strobe connectors optionally Nikonos V, IKELITE or Subtronic S6 Sockets connected in parallel, also bulkheads for optical cable is possible



Flash arm mounting:

2 x T-plates 25 mm, TLC - or Ultra light base optional shoe




Transmission and features:

All functions of the camera can be operated. In particular: main switch/backlight, shutter, zoom (manual focus), front and rear main dial, lens release, focus mode (M-S-C), AF mode, metering, AF-lock, AF-ON, port-lock, photo/video switching.



Push buttons for:

Mode, exposure compensation, bracketing, Flash method, AF mode, lock, video start / stop, playback, delete, menu, thumbnail, protect, OK, ISO, quality, white balance, microphone, multifunction button, info, Live View. AF-on, PV, FN, AF Mode, lens release.

Maximum depth: 80 m, 120m (Optional)

Weight:  approx. 1,48 kg

Weight in water:  nearly neutral (depending on the port and accessories)

The SUBAL Alpha 7 Mk2 housing for the Sony Alpha 7 II r and s provides access to all camera functions.

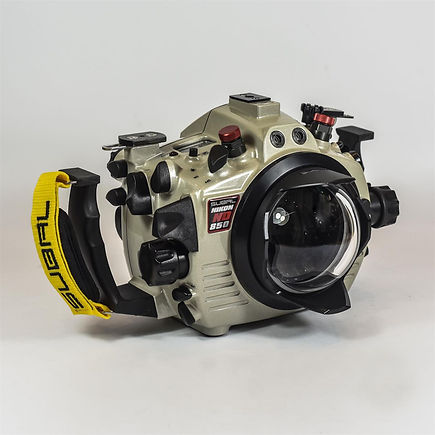

Subal ND850

for Nikon D850

With the SUBAL ND850 for the Nikon D850,  SUBAL offers Nikon cameras an aluminum housing for the latest development of the compact full frame.

The ergonomic SUBAL housing design and arrangement of all the key controls allows easy camera operation without letting go of the grip. The camera is fitted on a special cradle which enables a precise and faster, more secure mounting. A 4mm O-ring and the SUBAL Quick-Lock closure system prevents accidental crushing of the O-ring and ensures maximum safety. Threaded holes at the base allow the attachment of a tray. Focusing lights can be attached or mounted to the top shoe. The monitor window provides a glare-free and high-contrast view of the camera monitor. Material selection, processing, surface protection and finish conform to the usual high-quality that is common to all SUBAL products.


Subal ND850 housing provides access to all camera functions and buttons. The ergonomic SUBAL design and arrangement of all important elements of the housing will allow the camera very easy operation without leaving the handle.

Special hard coating protects the housing from any corrosion.



Technical Data:
Seawater-resistant aluminum alloy worked from a solid block. Hard-coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder-coating paint is applied to give the housing the Subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high-quality plastics to cope with the marine environment.




Transmission and features:

All functions of the camera can be operated. In particular: main switch/backlight, shutter, zoom (manual focus), front and rear main dial, lens release, focus mode (M-S-C), AF mode, metering, AF-lock, AF-ON, port-lock, photo/video switching.



Push buttons for:

Mode, exposure compensation, bracketing, Flash method, AF mode, lock, video start / stop, playback, delete, menu, thumbnail, protect, OK, ISO, quality, white balance, microphone, multifunction button, info, Live View. AF-on, PV, FN, AF Mode, lens release.

Maximum depth: 80 m (120 m on request)

Weight: Approx. 2 kg (without port and accessories)

Weight in water: nearly neutral (depending on the port and accessories)

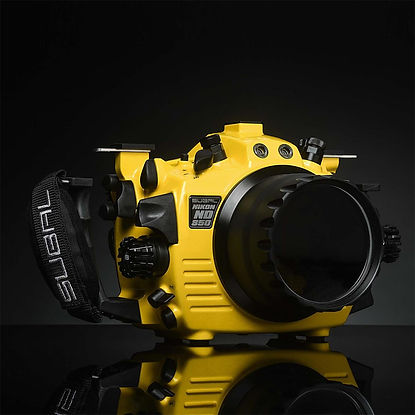

Subal ND850LE

for Nikon D850

SUBAL announce Limited Edition housing for Nikon D850 on honour of 100th years of Nikon.
Subal company exists and produces underwater housings since 1954. The first SUBAL housing for Nikon (F2 in SUBAL Uniflex housing) was produced in 1988, which made this year 30th anniversary of SUBAL housings for Nikon cameras.

SUBAL ND850 Limited Edition housing comes in special yellow color in combination with black color parts. Also some features are different - black aluminum wheels for zoom/focus gear, aperture, shutter speed control and black/silver SUBAL strap is also unique for this model.

SUBAL ND850 Limited Edition will be produced in only 30 pcs.


Subal ND850 Limited edition housing provides access to all camera functions and buttons. The ergonomic SUBAL design and arrangement of all important elements of the housing will allow the camera very easy operation without leaving the handle.

Special hard coating protects the housing from any corrosion. Additional 3 layers of powder coating paint is applied to give the housing the SUBAL Limited edition color and unique finishing.

2 pcs of 5pin Nikonos bulkheads with electronic and hotshoe comes included with housing, also additionally can be equipped with optical LED and sync cord with SUBAL V3 TTL adapter. Cross lines on the back of the housing are also developed to make easier positioning of housing during split photography. Standard Viewfinder is also included and can be upgraded to a 45° viewfinder.


Technical Data:
Seawater-resistant aluminum alloy worked from a solid block. Hard-coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder-coating paint is applied to give the housing the Subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high-quality plastics to cope with the marine environment.




Transmission and features:

All functions of the camera can be operated. In particular: main switch/backlight, shutter, zoom (manual focus), front and rear main dial, lens release, focus mode (M-S-C), AF mode, metering, AF-lock, AF-ON, port-lock, photo/video switching.



Push buttons for:

Mode, exposure compensation, bracketing, Flash method, AF mode, lock, video start / stop, playback, delete, menu, thumbnail, protect, OK, ISO, quality, white balance, microphone, multifunction button, info, Live View. AF-on, PV, FN, AF Mode, lens release.

Maximum depth: 80 m (120 m on request)

Weight: Approx. 2 kg (without port and accessories)

Weight in water: nearly neutral (depending on the port and accessories)

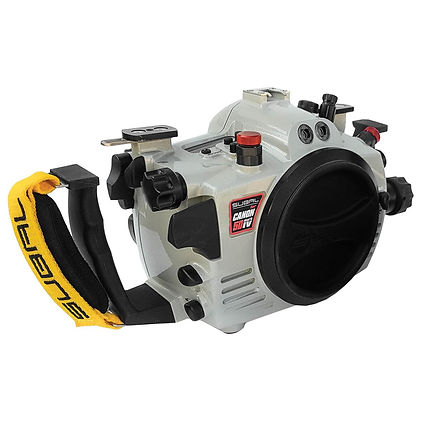

Subal CD5 MIV

for Canon EOS 5 D MK IV

With the SUBAL CD5 MIV for the Canon EOS 5D mark IV, SUBAL offers an aluminum housing for the latest development of the compact full-frame SLRs from Canon, SUBAL without restrictions in the angle! There is no limit to the creativity of the underwater photographers.

The ergonomic SUBAL design and arrangement of all important elements of the housing allows the camera easy operation without letting go of the handle. The camera is mounted on a special sled, to secure the camera with precision into the housing. This allows a faster and secure mounting. A 4 mm O ring and the SUBAL Quick Lock closure system, prevents accidental crushing of the O-ring and ensures maximum safety.


Only high quality materials are used to produce Subal housings. A precise manufacturing process followed by the surface protection finish, to conform the standard quality level that you get in every SUBAL product.



All SUBAL ports with bayonet mount on this case can be used (except DP-FE2).





Technical data:

Seawater resistant aluminum alloy machined from the block. Hard coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder coating paint are applied to give the housing the unique SUBAL color and finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high quality plastics, to endure all working conditions. SUBAL QuickLock closure system.



Width x height x depth:

Approx. 260 x 190 x 130 mm
(w/o port and handles)


Flash connection:

2 Flash connectors: Optionally Nikonos V, IKELITE or S6 Sockets connected in parallel. TTL function only with S6 socket and original Canon flash unit or possible with corresponding Flash devices from other manufacturers!



Flash arm mounting:

2 x T-plates 25 mm, TLC - or ultralight base optional


Transmission and features:

Main switch, shutter, backlight, zoom / manual focus, AF-On, front and rear main dial, mode dial, lens release, cursor.


Push buttons for:

Metering mode/white balance, AF/drive, ISO/Flash compensation, menu, picture style, info, playback, delete, AF area selector, set, live view.


Maximum depth: 70 m (120 m on request)

Weight: Approx. 2.7 kg (w/o port and accessories)

Weight in water:
nearly neutral (depending on the port and accessories)

Subal GX7

 for Panasonic Lumix DMC GX7

The SUBAL GX7 housing provides access to all camera functions including the ability to open and close the built-in flash unit. A clip-on visor prevents distracting reflections and light on the monitor. The back cover closes using the proven SUBAL quick-lock system.

Only SUBAL ports with bayonet type 3 mounts can be used with a 2/3 adapter ring except the DP-FE2

Super fast installation using the Mono-quick-lock system !



Technical data

Seawater-resistant aluminum alloy carved from a solid block finished with a  hard-coating surface and corrosion resistance. All parts made of hard-anodized light alloy, acid-resistant stainless steel and high-quality plastics. Seamless precision O-rings seals. SUBAL Quick Lock closure system.



Width x height x depth:

approx. 230 x 150 x 120 mm



Strobe connection:
1 x Sea & Sea fiber optic port



Additional equipment included:

Optical / Acoustic leak alarm with LED indicator in the monitor window.

Wrist strap

Monitor visor



Functions and push-buttons

All functions of the camera can be operated. In particular: main switch, trigger, zoom (manual focus), rear adjustment wheel, lens release, function selector , smart auto button, ISO button, white balance, video function.

The  SUBAL GX7 housing  for  Panasonic  Lumix  DMC GX7  provides access to all camera functions including the ability to open and close the built-in flash.

Maximum depth: 70 m and optional  120m

Weight:  1460 gr. aprox with grip (w/o port and accessories)

Weight in water: Nearly neutral (depending on the port and accessories)

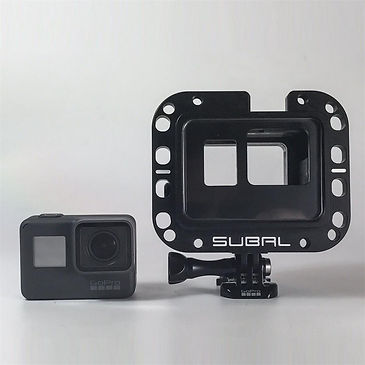

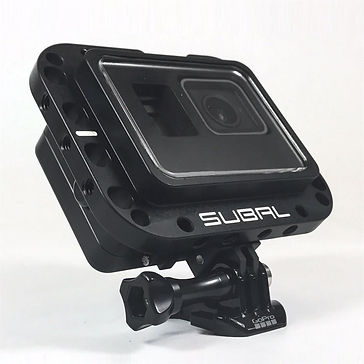

Subal GO5

for the for GoPro Hero 5 and 6

Technical Data:

Seawater-resistant aluminum alloy worked from a solid block. Hard-coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder-coating paint is applied to give the housing the Subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high-quality plastics to cope with the marine environment.



The SUBAL GO5 housing for GoPro Hero 5 and 6 action camera provides access to all camera functions

Width x height x depth:

Approx. 107 x 88 x 50 mm (w/o port and handles)

Maximum depth: 300 m

Weight:  approx. 0,3 kg (w/o port and handles)

Weight in water:  nearly neutral (depending on the port and accessories)
